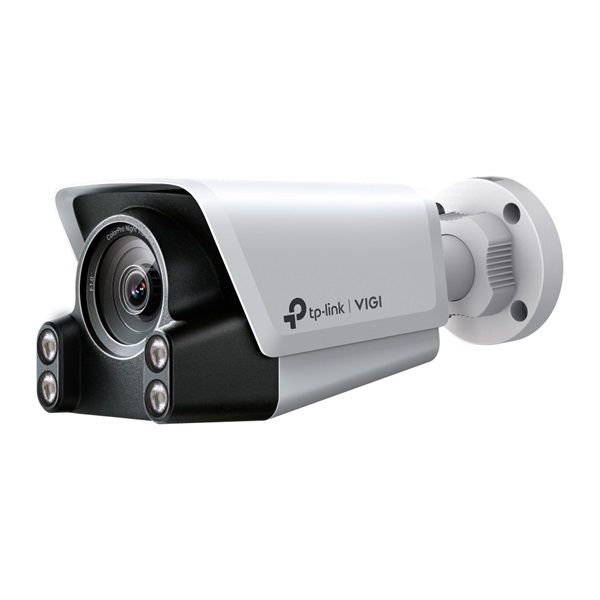

TP-LINK VIGI C340S(4MM) 4 Megapixel 4mm Objektív IP Kamera kültéri színes éjjellátó
74 957 Ft
Már nem érhető el
Azonosító:
1224353
Gyártói cikkszám:
VIGI C340S(4MM)
Fogyasztói jótállás:
24 Hónap
Jótállás (Jogi személy):
12 Hónap
Leírás
Termékinformációk "TP-LINK VIGI C340S(4MM) 4 Megapixel 4mm Objektív IP Kamera kültéri színes éjjellátó"
| Kamera | |
| Képérzékelő | 1/1.8” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | 4 mm: F1.0 |
| 6 mm: F1.0 | |
| Optika | Fixed focal lens (4 mm / 6 mm) |
| Lens Mount | M16*P 0.5 |
| Min. szükséges megvilágítás | Color: 0.0005 Lux; 0 Lux with white light |
| Day/Night Mechanism | NA |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| IR LED | N/A |
| White LED | Quantity: 4 |
| Range: 30m | |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| Weatherproof Rating | IP67 |
| Illumination Distance | 30 m |
| Látószög | 4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
| 6mm: Horizontal FOV: 58.1°, vertical FOV: 30.9°, Diagonal FOV: 68.4° | |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0 |
| FOV | 4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
| Lens Mount | M16*P 0.5 |
| DORI Distance | 4 mm: |
| Detect: 70 m (231 ft) | |
| Observe: 29 m (96 ft) | |
| Recognize: 14 m (46 ft) | |
| Identify: 7 m (23 ft) | |
| Angle Adjustment (Manual) | |
| Range | Pan: -90° to 90° |
| Tilt: -90° to 90° | |
| ILLUMINATOR | |
| IR LED | N/A |
| White LED | Quantity: 4 |
| Range: 30m | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Sub-Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 640x480, 352x288, 320x240 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps | |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC |
| Wide Dynamic Range | 120 dB |
| SNR | ? 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Hang | |
| Hangkommunikáció | Two-Way Audio |
| Hangbemenet | Yes |
| Hangkimenet | Yes |
| Hangtömörítés | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Hálózat | |
| Szabvány | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above |
| Firefox® 52 and above | |
| Safari® 11 and above | |
| Microsoft® Edge 91 and above | |
| Cloud | Yes |
| Biztonság | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| Figyelmeztetési és eseménykezelési vezérlés | |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | |
| Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Perimeter Protection | Motion, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering. |
| Supports Alarm Triggering by Specified Target Types (Human and Vehicle) | |
| Fizikai kezelőfelület | |
| Hálózati csatlakozás | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| Gomb | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Általános | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Csomagolás tartalma | VIGI Network Camera |
| Quick Start Guide | |
| Waterproof Cable Attachments | |
| Mounting Accessories | |
| Méret (Ma x Sz x Mé) | 99 × 102 × 236 mm |
| Borítás | Front Cover: Mental |
| Back Cover: Plastic | |
| Material | Front Cover: Metal |
| Back Cover: Plastic | |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Consumption | 12V DC: Max 10.1W |
| PoE: Class 0 | |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| PoE (802.3af/at, class 0) | |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 102× 236× 99 mm |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| Videó/Kép | |
| Videó tömörítés | Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| Kép frissítés (frame) és felbontás | Main Stream |
| Frame Rate: | |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 2688x1520,2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720 | |
| Note: If the image rotation is set to 90° or 270°, the frame | |
| rate only supports up to 20fps. | |
| Sub-Stream | |
| Frame Rate: | |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 640x480, 352x288, 320x240 | |
| Note: If the image rotation is set to 90° or 270°, the frame | |
| rate only supports up to 20fps. | |
| Videótovábbítás | Main Stream |
| Sub-Stream | |
| Képbeállítás | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC, HLC, 3D DNR |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps | |
| SMART FEATURE-SET | |
| Smart Event | Intrusion Detection, Object Abandoned/Removal Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Line Crossing Detection, Human Detection, Vehicle Detection |
| Basic Event | Motion detection, Camera Tampering, Scene Change Detection, Exception(illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
Specifikáció
| Kijelző felbontás: | 1920x1080 |
|---|
