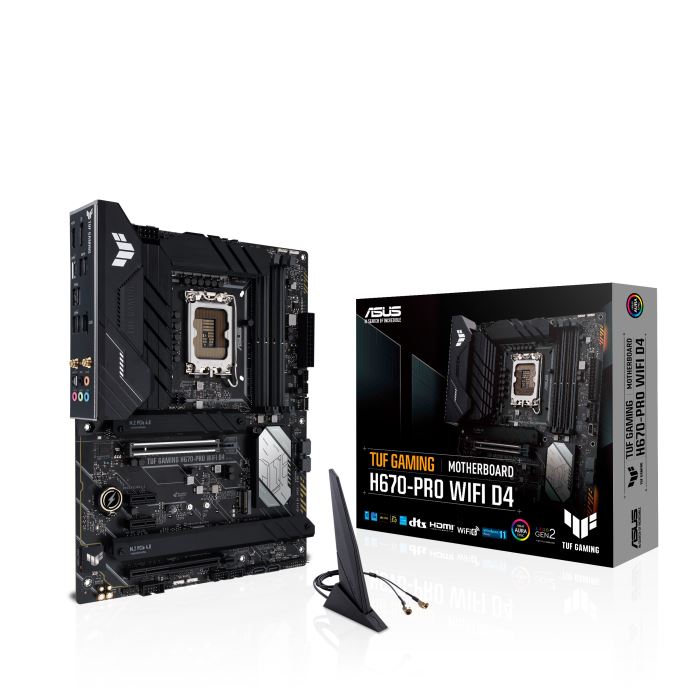

ASUS TUF GAMING H670-PRO WIFI D4 alaplap
CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset H670 Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® H670 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® H670 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel® 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 USB Rear USB:Total 7 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A ) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide Form Factor ATX 30.5cm x 24.4cm
ASUS PRIME B660M-K D4 alaplap
CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Memory 2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x D-Sub port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel®B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Realtek 1Gb Ethernet USB 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design ASUS Lighting Control -RGB header Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Installation Media 1 x Support DVD Documentation 1 x User manual Operating System Windows® 11 64-bit, Windows® 10 64-bit Windows® 11 64-bit, Windows® 10 64-bit Form Factor microATX 24.4cm x 21.1cm
ASUS PRIME H610M-D D4 alaplap
LGA1700, Intel H610, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 1xPCIE1, 4xSATA3, 4xUSB, 2xUSB3.2, VGA, HDMI, COM, PS2:1 db, 7.1, Gigabit, 1xM.2, Micro-ATX
ASUS Pro WS WRX80E-SAGE SE WIFI workstation alaplap (90MB1590-M0EAY0 / 90MB1E60-M0EAY0)
ASUS PRO WS AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages
ASRock B550M Phantom Gaming 4 alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 4xUSB3.2, HDMI, DisplayPort, PS2:1 db, 7.1, Gigabit, 1xM.2, 1xHyper M.2, Micro-ATX
Gigabyte B550 AORUS ELITE V2 alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 3xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 5xUSB3.2, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, 2xM.2, ATX
ASRock A520M-HVS alaplap
AM4, AMD A520, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 4xUSB3.2, VGA, HDMI, PS2:1 db, 7.1, Gigabit, 1xUltra M.2, Micro-ATX

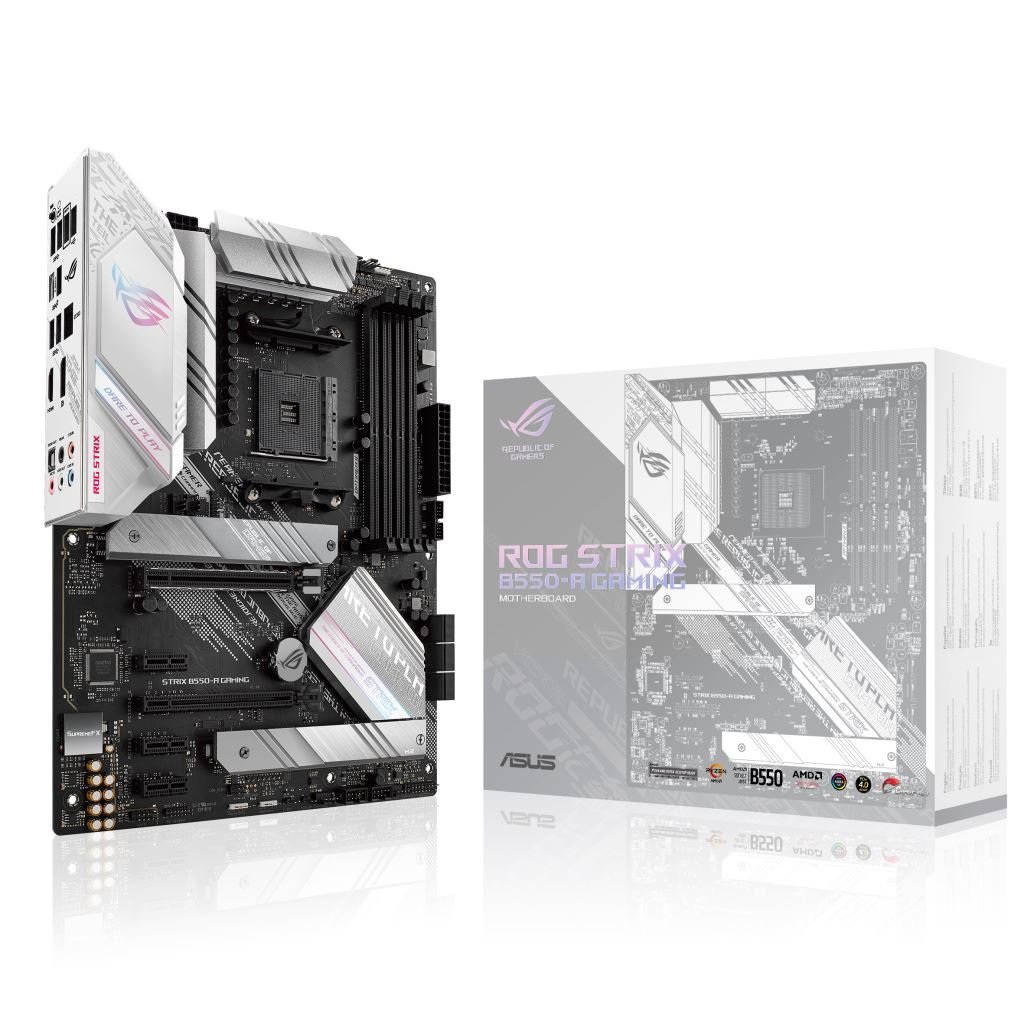

ASUS ROG STRIX B550-A GAMING alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 3xPCIE1, 6xSATA3, RAID, 2xUSB, 5xUSB3.2, 1xUSB3.2C, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, 2xM.2, ATX
Gigabyte B550M AORUS ELITE alaplap
Tulajdonságok: AMD StoreMI technológiaA GIGABYTE B550 alaplapok maximálisan kihasználják PC-d képességeit az AMD StoreMI technológiával. A StoreMI felgyorsítja a hagyományos adattárolókat és lerövidíti az indulási időt, vagyis jelentősen javítja a felhasználói élményt. Ez az egyszerűen használható szoftver egyetlen meghajtóban egyesíti az SSD-k gyorsaságát a hagyományos HDD-k óriási kapacitásával. Javítja az írási/olvasási tempót SSD-szintre emelve ezeket, a sebességet pedig kiváló forint/Gigabyte mutatóval egészíti ki, hogy akár egy hétköznapi, átlagos konfiguráció is kiválóan teljesítő PC-vé avanzsáljon. 5+3-Fázisú Tisztán Digitális VRM Megoldás Low RDS(on) MOSFET-ekkelA GIGABYTE AORUS sorozatú alaplapok 5+3-fázisú tisztán digitális PWM + Low RDS(on) MOSFET dizájnt használnak, amely hihetetlen pontossággal képes a 3. Generációs AMD Ryzen™ CPU-k számára biztosítani a szükséges tápfeszültségeket. Ez az alaplap legnagyobb és egyben legérzékenyebb fogyasztója számára tökéletes tápellátást biztosít, emellett jobb rendszerteljesítményt és kiváló hardveres skálázhatóságot kínál. Dupla NVMe PCIe 4.0*/3.0 M.2 FoglalatAz NVMe PCIe 4.0*/3.0 x4 és PCIe 3.0 x2 M.2 alaplapi foglalatokkal a GIGABYTE Alaplapok elhozzák a tökéletes, kompromisszummentes M.2 SSD-kezelést, legyen szó akár NVMe, akár SATA módról. Az akár 64 Gb/s sávszélesség és a dupla M.2 foglalat ideális tárolási megoldás kiépítését teszi lehetővé akár RAID módok aktiválásával is. * A tényleges támogatás CPU-tól is függhet. Nagysebességű gigabites LAN automatikus sávszélesség-elosztássalA Realtek 8118 LAN egy nagy teljesítményű és barátságos hálózati chip automatikus sávszélesség-elosztással kifejezetten játékosok igényeihez szabva, így biztosítja a játék vagy alkalmazás legmagasabb hálózati prioritását. A felhasználók a legátfogóbb szolgáltatásokat és a leggyorsabb, legegyszerűbb internetes élményt kapják. HDMI 2.1 port 4K / 60P / 21:9 / HDCP 2.3 TámogatássalA HDMI 2.1 visszafelé kompatibilis a HDMI 2.0/ 1.4-gyel és 48 Gb/s sávszélességet kínál - ez duplája az előző generációénak. Ez a szabvány lehetővé teszi a felhasználók számára, hogy több video-jelfolyamot továbbítsanak egyszerre, vagy akár natív 21:9-es képarányt használjanak (így készül a legtöbb film) teljes HDR és HDCP 2.3 támogatás mellett, hogy a lehető legjobb vizuális élményben lehessen részük. Smart Fan 5A Smart Fan 5 segítségével a felhasználók biztosíthatják a stabilitást és a csúcsteljesítményt alacsony hőmérsékletek mellett. A Smart Fan 5 minden egyes ventilátort külön-külön képes kezelni, a kiegészítő hőérzékelőket pedig egyedi helyekre rögzíthetjük, hogy ezáltal precíz és személyre, pontosabban gépre szabott hűtést állíthassunk be. A Smart Fan 5 emellett hibrid csatlakozókat kínál és kezeli a PWM, valamint a hagyományos ventilátorokat is, sőt, a vízpumpákhoz is ideális. RGB Fusion 2.0A B550 alaplapokon minden eddiginél jobb a Címezhető LED-ekkel kompatibilis RGB Fusion 2.0 világítási rendszer. Az RGB Fusion 2.0 lehetővé teszi a felhasználók számára, hogy vezéreljék az alaplapi és a külső RGB/Címezhető LED-szalagokat* kényelmesen, PC-jükről. Már alapértelmezetten számos színhatással és világítási effekttel szereltük fel az RGB Fusion 2.0-t, amely mostantól Címezhető LED-támogatást is kapott. A külső Címezhető LED-szalagoknál minden egyes LED digitálisan, egyesével címezhető, így a felhasználók eddig soha nem látott effektekkel és világítási hatásokkal dobhatják fel gépeiket. A B550 alaplapok támogatják az 5V és 12V Címezhető LED-szalagokat és akár 300 LED-ből álló mátrixokat. Az RGB Fusion 2.0 világítás Címezhető LED-támogatással új effekteket és többféle sebességbeállítást támogat. Később újabb effektek is várhatók még. * A külső RGB LED-szalagok és címezhető RGB LED-szalagok nem járnak vásárláskor az alaplaphoz. Q-Flash PlusA GIGABYTE Q-Flash Plusszal többé nem szükséges CPU-t, memóriát vagy grafikus kártyát építened az alaplapba, sőt, még a BIOS menüjébe sem kell belépned, hogy frissítsd a BIOS-t. Csak töltsd le a hivatalos weboldalról az új BIOS-fájlt (nevezd át gigabyte.bin-re) egy USB kulcson, majd nyomd meg a dedikált Q-Flash Plus gombot, hogy automatikusan frissüljön a BIOS-od! A legújabb anti-kén védelemA levegőben lévő kénvegyületek behatolhatnak az apró felületszerelt ellenállásokba, ezzel pedig kémiai változást eredményezhetnek, hogy az ellenállás szakadásként, vagy rövidzárként viselkedjen. Ha ezek közül bármelyik előfordul, akkor az alaplap nem fog elindulni. Az ellenállások felszerelése egy kénmentes eljárással történik, így a GIGABYTE teljesen új jelentést ad az Ultra Durable (Ultra-strapabíró) kifejezésnek.
Gigabyte B550 AORUS ELITE AX alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 3xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 6xUSB3.2, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, WiFi, Bluetooth, 2xM.2, ATX
Gigabyte A520M S2H alaplap
CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer "CPU Support List" for more information.) Chipset AMD A520 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 USB CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x Q-Flash Plus button 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Gigabyte A520M DS3H alaplap
CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer "CPU Support List" for more information.) Chipset AMD A520 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 USB CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
MSI B550-A PRO alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 2xPCIE1, 6xSATA3, RAID, 4xUSB, 3xUSB3.2, 1xUSB3.2C, HDMI, DisplayPort, PS2:1 db, 7.1, Gigabit, 2xM.2, ATX
MSI B550M PRO-VDH WIFI alaplap
Chipset: B550 | Processzor foglalat: AMD AM4 | Méretszabvány: m-ATX | Memória: 4db DDR4 (Dual Channel, Max. 128GB) | LAN: 1 Gigabit, Wi-Fi: 802.11ac | PCIe: 1db PCIe4.0x16 | Csatlakozók: 1db M.2(Gen4), 1db M.2(Gen3), 4db SATA3 | USB: 7db USB 3.0, 6db USB
ASRock B550 Phantom Gaming 4 alaplap
Chipset: B550 | Processzor foglalat: AMD AM4 | Méretszabvány: ATX | Memória: 4db DDR4 (Max. 128GB) | LAN: 1 Gigabit | PCIe: 1db PCIe4.0x16, 1db PCIe3.0x16, 2db PCIe3.0x1 | AMD CrossFireX | Csatlakozók: 6db SATA3 | USB: 8db USB 3.0, 4db USB 2.0
ASUS ROG STRIX B550-F GAMING alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 3xPCIE1, 6xSATA3, RAID, 2xUSB, 5xUSB3.2, 1xUSB3.2C, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, Gigabit, 2xM.2, ATX
Gigabyte B550 GAMING X alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 3xPCIE1, 4xSATA3, RAID, 2xUSB, 4xUSB3.2, DVI, HDMI, PS2:1 db, 7.1, Gigabit, 2xM.2, ATX
ASRock B550M Pro4 alaplap
Chipset: B550 | Processzor foglalat: AMD AM4 | Méretszabvány: mATX | Memória: 4db DDR4 (Max. 128GB) | LAN: 1 Gigabit | PCIe: 1db PCIe4.0x16, 1db PCIe3.0x16, 1db PCIe3.0x1 | AMD CrossFireX | Csatlakozók: 6db SATA3 | USB: 2db USB 3.1, 8db USB 3.0, 6db USB 2
ASUS PRIME B550M-K alaplap
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 1xPCIE16, 2xPCIE1, 4xSATA3, RAID, 6xUSB3.2, DVI, VGA, HDMI, PS2:1 db, 7.1, Gigabit, 2xM.2, Micro-ATX
ASUS TUF GAMING B550M-PLUS alaplap (90MB14A0-M0EAY0)
AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 5xUSB3.2, 1xUSB3.2C, HDMI, DisplayPort, PS2:1 db, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, 2xM.2, Micro-ATX
GIGABYTE S1700 B760 DS3H INTEL B760 ATX Alaplap
CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
