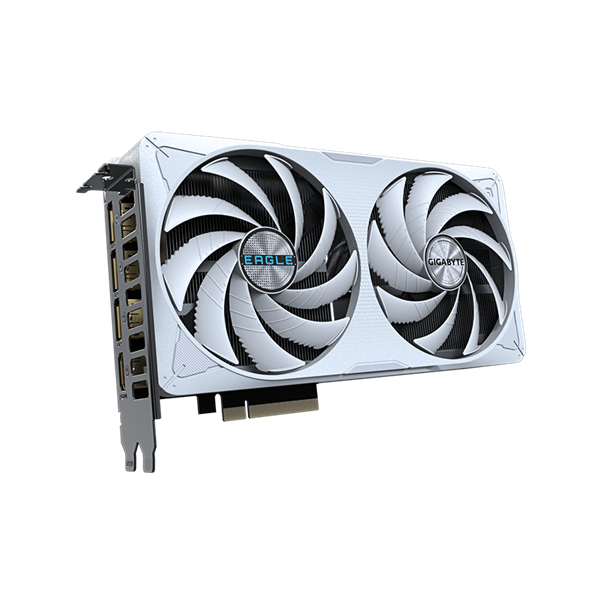

GIGABYTE PCI-Ex16x nVIDIA RTX 5060 Ti 8GB DDR7 OC Videokártya
Graphics Processing GeForce RTX™ 5060 Ti Core Clock 2647 MHz (Reference card :2572 MHz) CUDA® Cores TBD Memory Clock 28 Gbps Memory Size 8 GB Memory Type GDDR7 Memory Bus 128 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=281 W=117 H=40 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 650W Power Connectors 8 Pin*1 Output DisplayPort 2.1b *3 HDMI 2.1b *1 Accessories Quick guide

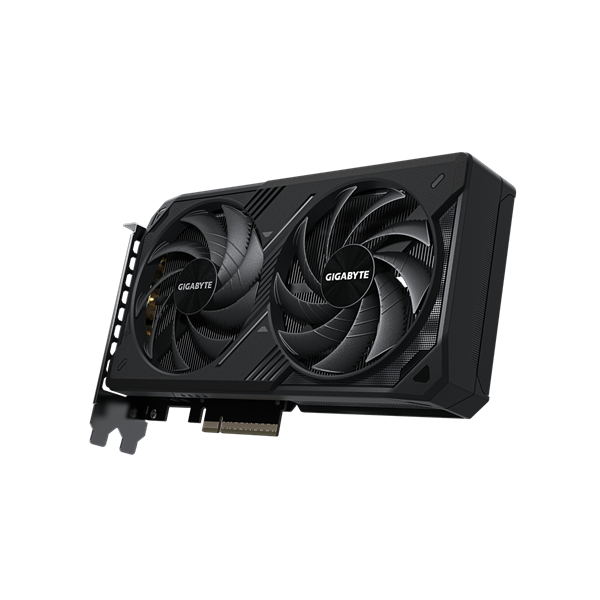

GIGABYTE PCI-Ex16x nVIDIA RTX 5060 Ti 8GB DDR7 OC Videokártya
Graphics Processing GeForce RTX™ 5060 Ti Core Clock 2617 MHz (Reference card :2572 MHz) CUDA® Cores TBD Memory Clock 28 Gbps Memory Size 8 GB Memory Type GDDR7 Memory Bus 128 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=215 W=122 H=40 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 650W Power Connectors 8 Pin*1 Output DisplayPort 2.1b *3 HDMI 2.1b *1 Accessories Quick guide
GIGABYTE PCI-Ex16x nVIDIA RTX 5060 Ti 8GB DDR7 OC Videokártya
Graphics Processing GeForce RTX™ 5060 Ti Core Clock 2617 MHz (Reference card :2572 MHz) CUDA® Cores TBD Memory Clock 28 Gbps Memory Size 8 GB Memory Type GDDR7 Memory Bus 128 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=215 W=122 H=40 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 650W Power Connectors 8 Pin*1 Output DisplayPort 2.1b *3 HDMI 2.1b *1 Accessories Quick guide
CORSAIR Moduláris RM1000e 1000W 12cm ATX 3.1 PCIe 5.1 BOX Cybenetics Gold Tápegység Fehér
1x 24-pin ATX (24-pin) Connector Cable2x 8-pin ATX 12V/EPS12V (4+4-pin) Connector Cables1x 8-pin PCIe (6+2-pin) Connector Cable1x 600W 12V-2x6 (12+4-pin) Connector Cable1x 12V-2x6 (12+4-pin) to dual 8-pin PCIe (6+2-pin) Cable6x SATA Connectors2x PATA Connectors

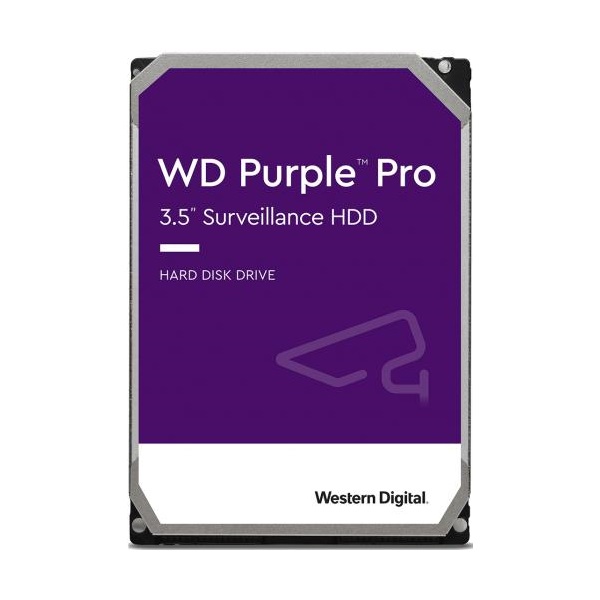

WESTERN DIGITAL 3.5" SATA-III 12TB 7200rpm 512MB Cache CAVIAR Purple HDD
Csatoló: SATA3 Fordulat: 7200rpm Gyártó WESTERN DIGITAL Méret: 3.5" Puffer: 512MB Tárolókapacitás: 12TB

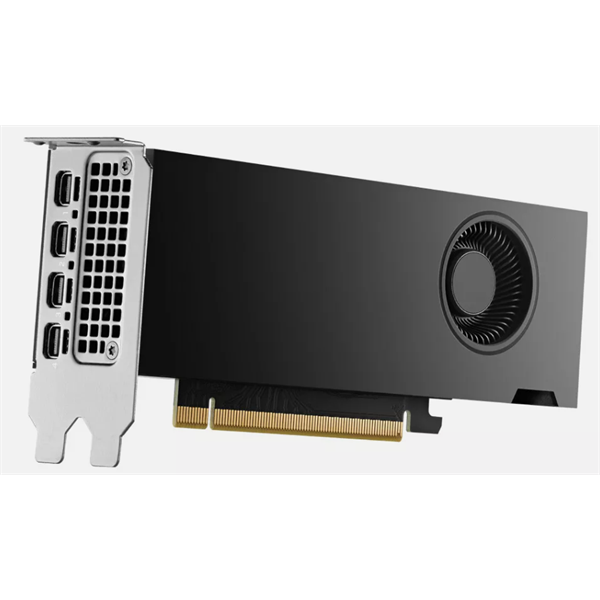

nVIDIA PCI-Ex16x nVIDIA Quadro RTX 2000 ADA 16GB DDR6 Videokártya
GPU memory 16GB GDDR6Memory interface 128-bitMemory bandwidth 224 GB/sError-correcting code (ECC) YesNVIDIA Ada Lovelace architecture-basedCUDA Cores2,816NVIDIA fourth-generation Tensor Cores 88NVIDIA third-generation RT Cores 22Single-precision performance 12.0 TFLOPS2RT Core performance 27.7 TFLOPS2Tensor performance 191.9 TFLOPS3System interface PCIe 4.0 x 84Power consumption Total board power: 70 WThermal solution ActiveForm factor 2.7” H x 6.6” L, Dual SlotDisplay connectors 4x Mini DisplayPort 1.4aMax simultaneous displays 4x 4096 x 2160 @ 120 Hz4x 5120 x 2880 @ 60 Hz2x 7680 x 4320 @ 60 HzEncode/decode engines 1x encode, 1x decode (+AV1 encode anddecode)VR-ready YesGraphics APIs DirectX 12, Shader Model 6.6,OpenGL 4.65, Vulkan 1.35Compute APIs CUDA 11.6, OpenCL 3.0, DirectCompute
GIGABYTE PCI-Ex16x nVIDIA RTX 5060 Ti 8GB DDR7 OC Videokártya
Graphics Processing GeForce RTX™ 5060 Ti Core Clock 2587 MHz (Reference card :2572 MHz) CUDA® Cores TBD Memory Clock 28 Gbps Memory Size 8 GB Memory Type GDDR7 Memory Bus 128 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=208 W=120 H=40 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 650W Power Connectors 8 Pin*1 Output DisplayPort 2.1b *3 HDMI 2.1b *1 Accessories Quick guide
MSI AM5 MAG X870E TOMAHAWK WIFI AMD X870E ATX Alaplap
Chipset AMD X870 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. Onboard Graphics 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot Audio Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output Storage 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports *** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. **** Please refer to the manual for M.2 SSD heatsink restrictions Multi-GPU AMD MULTI-GPU Support RAID Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) LAN Realtek® 8126-CG 5G LAN Internal IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
KINGSTON M.2 PCIe 5.0 NVMe 1024GB FURY Renegade G5 SSD
Form factor M.2 2280 Interface PCIe 5.0 x4 NVMe Capacities2 1024GB, 2048GB, 4096GB Controller SM2508 NAND 3D TLC DRAM cache Yes DirectStorage supported Yes Sequential read/write1 1024GB – up to 14,200/11,000MB/s 2048GB – up to 14,700/14,000MB/s 4096GB – up to 14,800/14,000MB/s Random 4K read/write1 1024GB - up to 2,200,000/2,150,000 IOPS 2048GB – 4096GB - up to 2,200,000/2,200,000 IOPS Endurance (total bytes written)3 1024GB – 1.0PB 2048GB – 2.0PB 4096GB – 4.0PB Power consumption4 1024GB – 0.27W avg / 6.6W @ 14.2G / 6.6W (MAX) 2048GB – 0.27W avg / 7.0W @ 14.7G / 7.0W (MAX) 4096GB – 0.27W avg / 7.1W @ 14.8G / 9.5W (MAX) Storage temperature -40°C~85°C Operating temperature 0°C~70°C Dimensions 80mm x 22mm x 2.3mm Weight 1024GB – 7.3g 2048GB-4096GB – 7.7g Vibration operating 2.17G peak (7-800Hz) Vibration non-operating 20G peak (20-1000Hz) MTBF 2,000,000 hours Warranty/Support5 Limited 5-year warranty with free technical support
KINGSTON M.2 PCIe 5.0 NVMe 2048GB FURY Renegade G5 SSD
Form factor M.2 2280 Interface PCIe 5.0 x4 NVMe Capacities2 1024GB, 2048GB, 4096GB Controller SM2508 NAND 3D TLC DRAM cache Yes DirectStorage supported Yes Sequential read/write1 1024GB – up to 14,200/11,000MB/s 2048GB – up to 14,700/14,000MB/s 4096GB – up to 14,800/14,000MB/s Random 4K read/write1 1024GB - up to 2,200,000/2,150,000 IOPS 2048GB – 4096GB - up to 2,200,000/2,200,000 IOPS Endurance (total bytes written)3 1024GB – 1.0PB 2048GB – 2.0PB 4096GB – 4.0PB Power consumption4 1024GB – 0.27W avg / 6.6W @ 14.2G / 6.6W (MAX) 2048GB – 0.27W avg / 7.0W @ 14.7G / 7.0W (MAX) 4096GB – 0.27W avg / 7.1W @ 14.8G / 9.5W (MAX) Storage temperature -40°C~85°C Operating temperature 0°C~70°C Dimensions 80mm x 22mm x 2.3mm Weight 1024GB – 7.3g 2048GB-4096GB – 7.7g Vibration operating 2.17G peak (7-800Hz) Vibration non-operating 20G peak (20-1000Hz) MTBF 2,000,000 hours Warranty/Support5 Limited 5-year warranty with free technical support
GIGABYTE PCI-Ex16x nVIDIA RTX 5060 8GB DDR7 OC Videokártya
Graphics Processing GeForce RTX™ 5060 Core Clock TBD CUDA® Cores 3840 Memory Clock 28 Gbps Memory Size 8 GB Memory Type GDDR7 Memory Bus 128 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=199 W=116 H=40 PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 450W Power Connectors 8 Pin*1 Output DisplayPort 2.1b *3 HDMI 2.1b *1 Accessories Quick guide
