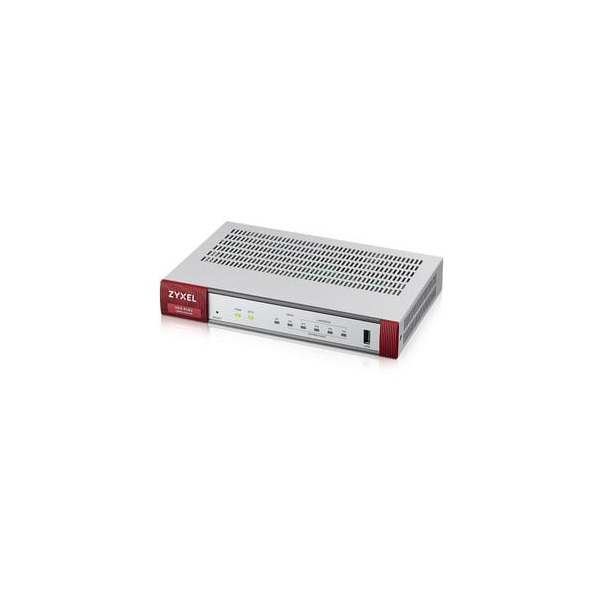

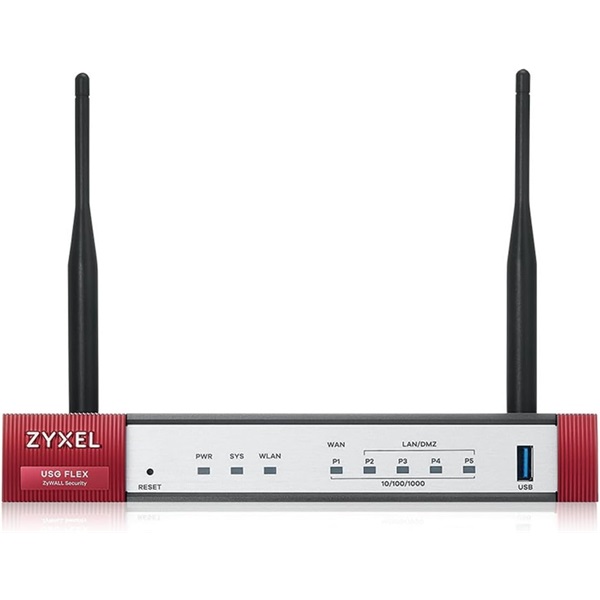

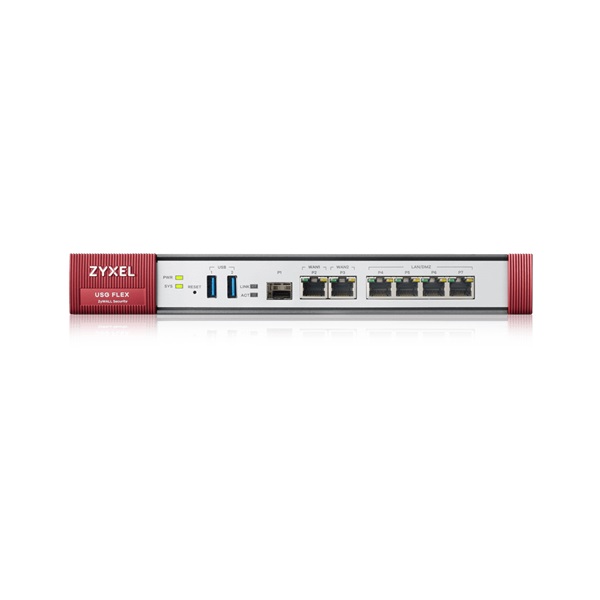

Zyxel USG Flex Firewall, VERSION 2, 10/100/1000,1*WAN, 4*LAN/DMZ ports, 1*USB with 1 Yr UTM bundle

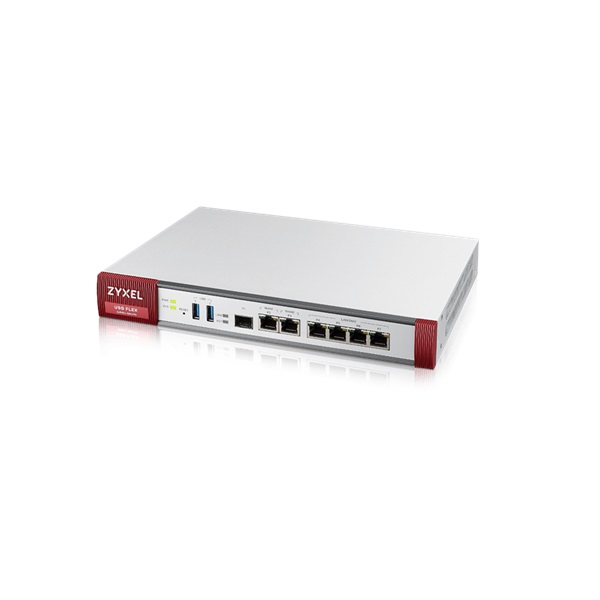

USG FLEX 100 USG FLEX 100W USG FLEX 200 USG FLEX 500 USG FLEX 700 Hardver specifikációk Vezeték nélküli szabvány - 802,11 a / b / g / n / ac - - - 10/100/1000 Mbps RJ-45 portok 4 x LAN / DMZ, 1 x WAN, 1 x SFP 4 x LAN / DMZ, 1 x WAN, 1 x SFP 4 x LAN / DMZ, 2 x WAN, 1 x SFP 7 (konfigurálható), 1x SFP 12 (konfigurálható), 2x SFP (konfigurálható) USB3.0 portok 1 1 2 2 2 Konzol port RJ45 RJ45 DB9 DB9 Igen (DB9) Rackre szerelhető - - Igen Igen Igen Ventilátor nélküli Igen Igen Igen - -

ZyXEL USGFLEX50 4xGbE LAN/DMZ 1xWAN 1xUSB port Tűzfal Nebula Az USG FLEX 50 immáron a Nebula felhőkezelési család része, ugyanazzal az egyszerű kezelőfelülettel, valamint egyszerűsített konfigurációval és frissítésekkel. A hálózati funkciók és felügyeleti szolgáltatások a felhőbe kerülnek, és az elosztott hálózatok kezelésére vannak optimalizálva. Biztonságos kiskereskedelmi/fiókhálózat Az USG FLEX 50 átfogó VPN-kapcsolattípusokat kínál, beleértve az IKEv2, SSL és IPsec VPN-t. Mindegyik biztonságos távoli kapcsolatot kínál ügyfeleinek. IPsec VPN hardvermotor a nagy hatékonyságú VPN alagúthoz. A VPN-terhelés egyensúlya/feladatátvétele az IKEv2-vel erős VPN-megbízhatóságot és biztonságot biztosít vállalkozása számára. Az USG FLEX 50 kifejezetten a kisvállalkozások és fióktelepek igényeihez készült, nagyvállalati szintű biztonságot nyújtva. A fejlett hálózati és biztonsági funkciók, mint például a Webszűrés, a Biztonsági profil szinkronizálása és a SecuReporter javítják a biztonságot azáltal, hogy blokkolják a rosszindulatú vagy kockázatos webhelyekhez való hozzáférést, valamint a szabályozott hozzáférést integrált tűzfalszabályzattal a rendkívül részletes blokkoláshoz és szűréshez, egységes biztonsági megoldást hozva létre mind vezetékes, mind vezeték nélküli hálózatokhoz. Központosított ellátás A Zero-Touch üzembe helyezés és az egyszerűsített központosított felügyelet révén a telepítés és az üzemeltetés többé nem okoz gondot. A hálózathoz való regisztrációt követően az USG FLEX 50 automatikusan felismerésre kerül, amikor csatlakoztatva van, majd az előre konfigurált beállítások automatikusan alkalmazásra kerülnek. Az USG FLEX 50 további hardver- és szoftvertelepítés nélkül kínál naplóarchiválási szolgáltatást az ügyfeleknek a szabályozások betartásában. Mindezt egy helyről könnyedén A hozzáférési pontoktól, kapcsolóktól, biztonsági átjáróktól és tűzfalaktól kezdve az összes Nebula eszközt a felhőn keresztül kezelik egy intuitív interfész segítségével, amely lehetővé teszi az összes elosztott hálózat konfigurálását, kezelését és hibaelhárítását egyetlen képernyőről a távoli webhely-hozzáférés bonyolultsága nélkül. Átfogó tartalomszűrő szolgáltatás Az USG FLEX 50 továbbfejlesztett tartalomszűrési funkcionalitást és biztonságot nyújt a kategóriaalapú szűrés hatékony kombinációja révén. A dinamikus tartalomkategorizálás elemzi egy korábban ismeretlen webhely és domain tartalmát, majd meghatározza, hogy az nemkívánatos kategóriába tartozik-e, beleértve a szerencsejátékokat, pornográfiát, játékokat és sok mást. Az újonnan hozzáadott DNS-tartalomszűrő jobb megközelítést kínál a webes hozzáférés ellenőrzésére, különösen akkor, ha a webhely ESNI-t (titkosított kiszolgálónév-jelzés) telepít, ahol a hagyományos URL-szűrés nem alkalmazható a céltartományra. Mély betekintés az összes eszközébe A Device Insightnak köszönhetően jobban áttekintheti hálózatait, beleértve a vezetékes, vezeték nélküli, BYOD és IoT eszközöket. Engedélyezze a különálló biztonsági szegmensekkel rendelkező eszközök azonosítását egészen egyéni szintig. Az eszközbetekintések az eszközökhöz kapcsolódó sebezhetőségeket is észlelik. Analitika jelentés és továbbfejlesztett statisztikák Az USG FLEX 50 irányítópult felhasználóbarát forgalmi összefoglalót és vizuális fenyegetettségi statisztikákat ad. Használja a SecuReporter-t további fenyegetéselemzéshez a korrelációs funkciók tervezésével, ami megkönnyíti a hálózat állapotának proaktív visszakövetését a következő fenyegetési esemény megelőzése érdekében. A hálózati tevékenységek központi láthatósága több ügyfél egyszerű kezeléséhez.

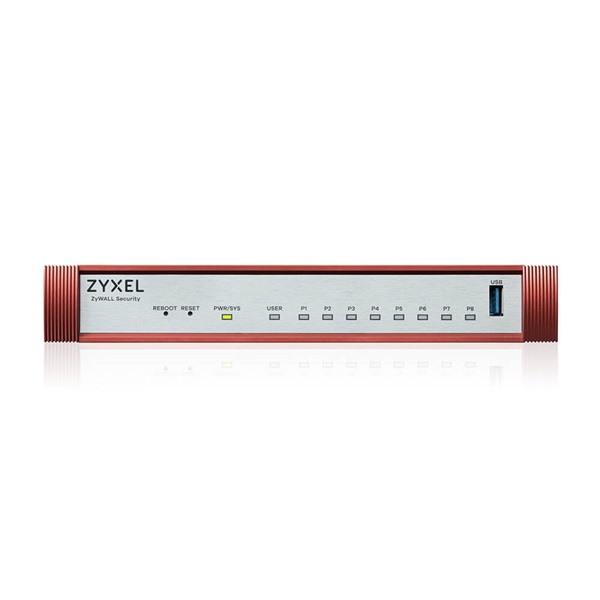

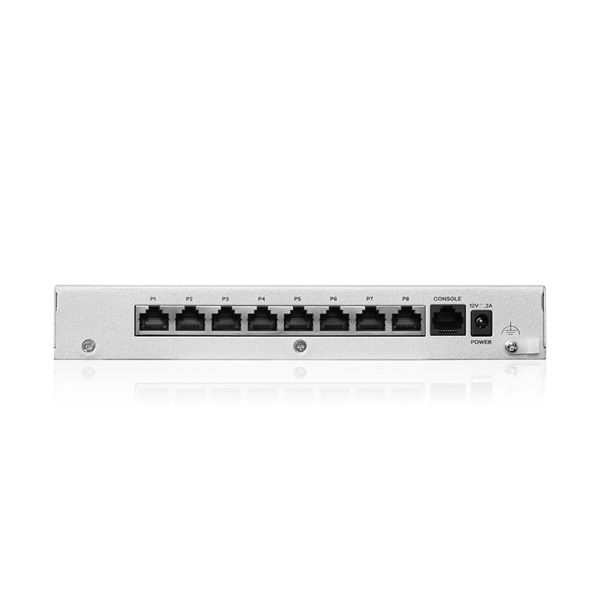

Hardware Specifications Interface ports 100H: 8 x 1-GbE Ethernet 100HP: 1 x PoE+ Ethernet (802.3at, 30W max.) USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable - Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 3,000 VPN throughput (Mbps)*3 750 IPS throughput (Mbps)*4 1,500 Anti-Malware throughput (Mbps)*4 750 UTM throughput (Anti-malware & IPS, Mbps)*4 750 Max. TCP concurrent sessions*5 300,000 Max. concurrent IPsec VPN tunnels*6 50 Recommended gateway-to-gateway IPsec VPN tunnels 20 Concurrent SSL VPN users 25 VLAN interface 16 Max. Concurrent devices logins*7 64 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 100H: 12V DC, 2A max. 100HP: 19V DC,3.42A Max. power consumption (Watt Max.) 100H: 17 100HP: 51.2 Heat dissipation (BTU/hr) 100H: 40.365 100HP: 194.5 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 216 x 143 x 33/8.50 x 5.80 x 1.30 Weight (kg/lb.): 100H: 1.04/2.29 100HP: 1.05/2.31 Packing Dimensions (WxDxH)(mm/in.): 278 x 189 x 99/10.94 x 7.44 x 3.89 Weight (kg/lb.): 100H: 1.62/3.57 100HP: 1.91/4.21 Included accessories Power adapter Power cord (100HP) RJ-45 - RS-232 cable for console connection Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 100H: 40°C/ 289845.2327 hr 25°C/ 518347.4294 hr 100HP: 40°C/ 291183.7887 hr 25°C/ 550382.5753 hr Acoustic noise - Certifications EMC FCC Part 15 (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI

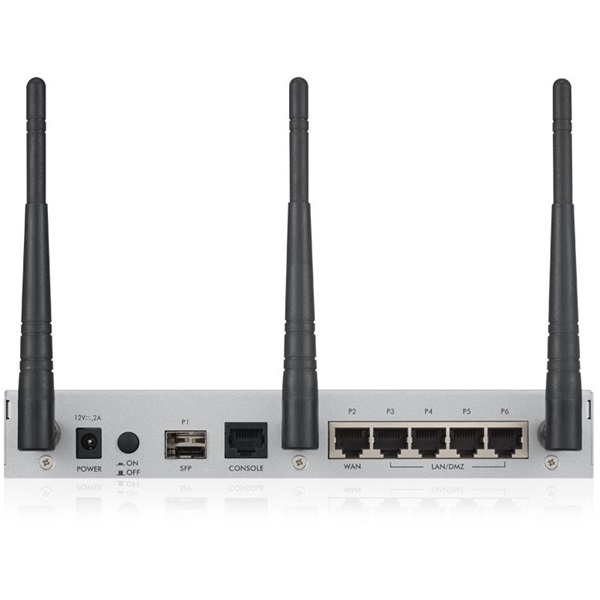

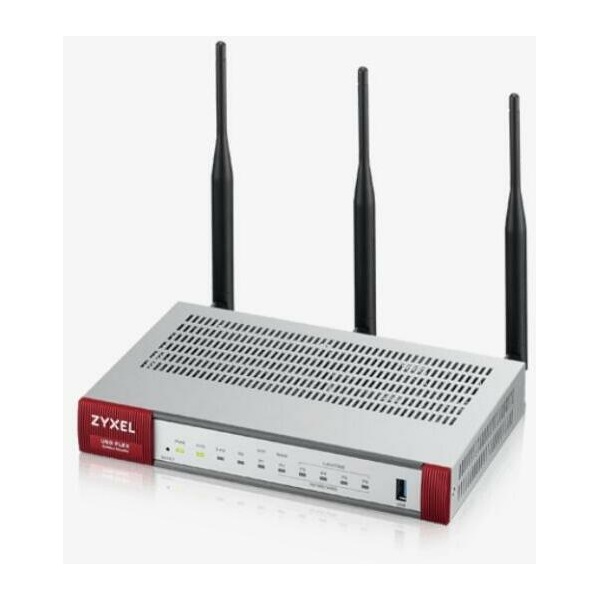

Hardware Specifications WiFi standard 802.11 ax/ac/n/g/b/a 10/100/1000 Mbps RJ-45 ports 4 x LAN/DMZ, 1 x WAN USB 3.0 ports 1 Console port RJ45 Rack-mountable - Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 900 VPN throughput (Mbps) 270 VPN IMIX Throughput (Mbps)*3 100 IPS throughput (Mbps)*4 540 Anti-Malware throughput (Mbps)*4 360 UTM throughput (Anti-malware & IPS, Mbps)*4 360 Max. TCP concurrent sessions*5 300,000 Recommended gateway-to-gateway IPsec VPN tunnels 20 Max. concurrent IPsec VPN tunnels*6 50 Concurrent SSL VPN users 30 VLAN interface 8 Wireless Specifications Standard compliance 802.11 ax/ac/n/g/b/a Wireless frequency 2.4 / 5 GHz Radio 2 SSID number 4 No. of antenna 2 detachable antennas Antenna gain 3dbi @2.4GHz/5GHz Data rate 2.4GHz: up to 600Mbps 5GHz: up to 1200Mbps Key Features Security Service Sandboxing*7 Yes Reputation Filter*7 Yes IPS*7 Yes Application Patrol*7 Yes Email Security*7 Yes Web filtering*7 Yes SecuReporter*7 Yes Collaborative Detection & Response*7 Yes SSL (HTTPS) Inspection Yes Geo Enforcer Yes 2-Factor Authentication Yes Device Insight Yes Security Profile Sync*7 Yes VPN Features VPN IKEv2, IPSec, SSL, L2TP/IPSec Microsoft Azure Yes Amazon VPC Yes WLAN Management Default Number of Managed AP 8 Recommend max. AP in 1 AP Group 10 Secure WiFi Service*7 Yes Maximum No. of Tunnel-Mode AP 6 Maximum No. of Managed AP 24 Management & Connectivity Nebula Cloud Mode Yes Nebula Cloud Monitoring Mode Yes Device HA Pro - Link Aggregation (LAG) - Hotspot Management*7 - Ticket printer support*9/ Support Qty (max.) - Concurrent device logins (default/max.)*7*8 64 Power Requirements Power input 12V DC, 2.5A max. Max. power consumption (Watt Max.) 24.3 Heat dissipation (BTU/hr) 55.37 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 216 x 149.28 x 33/8.50 x 5.88 x 1.30 Weight (kg/lb.): 1.00/2.20 Packing Dimensions (WxDxH)(mm/in.): 284 x 190 x 100/11.18 x 7.48 x 3.94 Weight (kg/lb.): 1.53/3.37 Included accessories Power adapter with plug RJ-45 - RS-232 cable for console connection Antenna Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 766,228.2 Acoustic noise - Certifications EMC FCC Part 15 (Class B) IC EMC (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI


Hardware Specifications Interface ports 100H: 8 x 1-GbE Ethernet 100HP: 1 x PoE+ Ethernet (802.3at, 30W max.) USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable - Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 3,000 VPN throughput (Mbps)*3 750 IPS throughput (Mbps)*4 1,500 Anti-Malware throughput (Mbps)*4 750 UTM throughput (Anti-malware & IPS, Mbps)*4 750 Max. TCP concurrent sessions*5 300,000 Max. concurrent IPsec VPN tunnels*6 50 Recommended gateway-to-gateway IPsec VPN tunnels 20 Concurrent SSL VPN users 25 VLAN interface 16 Max. Concurrent devices logins*7 64 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 100H: 12V DC, 2A max. 100HP: 19V DC,3.42A Max. power consumption (Watt Max.) 100H: 17 100HP: 51.2 Heat dissipation (BTU/hr) 100H: 40.365 100HP: 194.5 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 216 x 143 x 33/8.50 x 5.80 x 1.30 Weight (kg/lb.): 100H: 1.04/2.29 100HP: 1.05/2.31 Packing Dimensions (WxDxH)(mm/in.): 278 x 189 x 99/10.94 x 7.44 x 3.89 Weight (kg/lb.): 100H: 1.62/3.57 100HP: 1.91/4.21 Included accessories Power adapter Power cord (100HP) RJ-45 - RS-232 cable for console connection Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 100H: 40°C/ 289845.2327 hr 25°C/ 518347.4294 hr 100HP: 40°C/ 291183.7887 hr 25°C/ 550382.5753 hr Acoustic noise - Certifications EMC FCC Part 15 (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI


Hardware Specifications Interface ports 100H: 8 x 1-GbE Ethernet 100HP: 1 x PoE+ Ethernet (802.3at, 30W max.) USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable - Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 3,000 VPN throughput (Mbps)*3 750 IPS throughput (Mbps)*4 1,500 Anti-Malware throughput (Mbps)*4 750 UTM throughput (Anti-malware & IPS, Mbps)*4 750 Max. TCP concurrent sessions*5 300,000 Max. concurrent IPsec VPN tunnels*6 50 Recommended gateway-to-gateway IPsec VPN tunnels 20 Concurrent SSL VPN users 25 VLAN interface 16 Max. Concurrent devices logins*7 64 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 100H: 12V DC, 2A max. 100HP: 19V DC,3.42A Max. power consumption (Watt Max.) 100H: 17 100HP: 51.2 Heat dissipation (BTU/hr) 100H: 40.365 100HP: 194.5 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 216 x 143 x 33/8.50 x 5.80 x 1.30 Weight (kg/lb.): 100H: 1.04/2.29 100HP: 1.05/2.31 Packing Dimensions (WxDxH)(mm/in.): 278 x 189 x 99/10.94 x 7.44 x 3.89 Weight (kg/lb.): 100H: 1.62/3.57 100HP: 1.91/4.21 Included accessories Power adapter Power cord (100HP) RJ-45 - RS-232 cable for console connection Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 100H: 40°C/ 289845.2327 hr 25°C/ 518347.4294 hr 100HP: 40°C/ 291183.7887 hr 25°C/ 550382.5753 hr Acoustic noise - Certifications EMC FCC Part 15 (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI

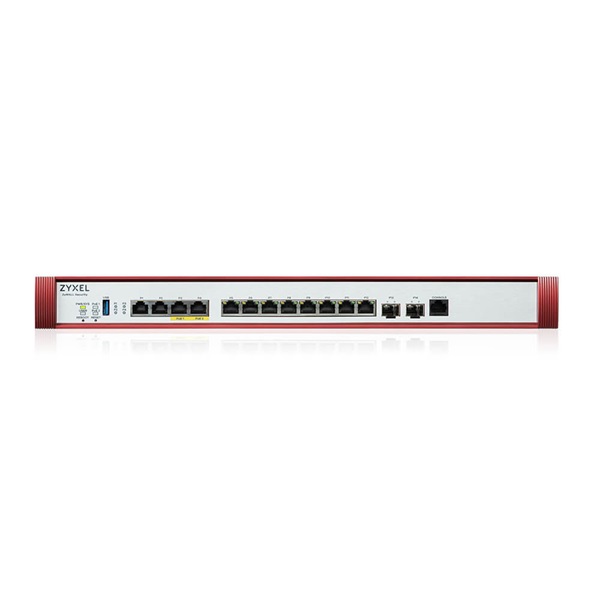

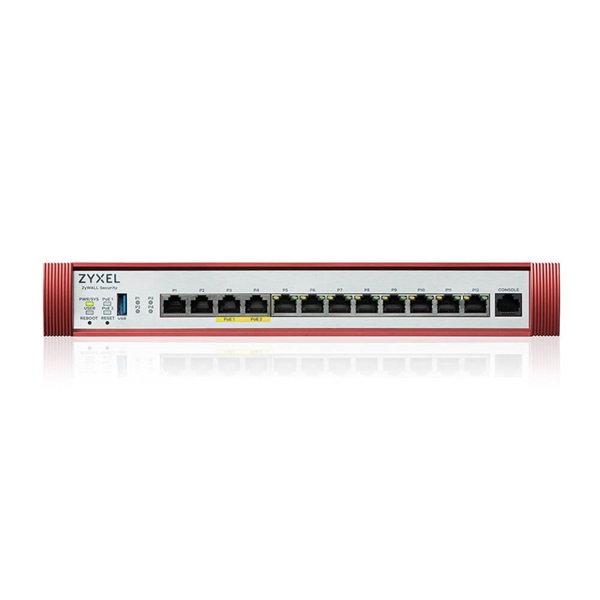

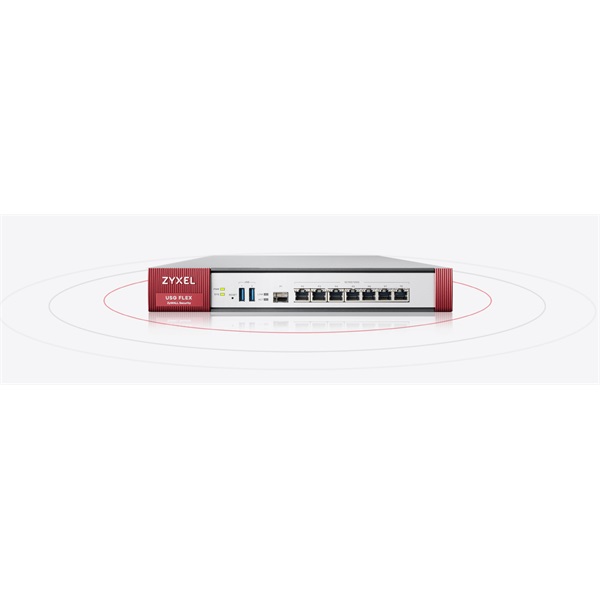

Hardware Specifications Interface ports 2 x 2.5-GbE Ethernet 2 x 2.5-GbE/PoE Ethernet (802.3at, total 30W) 8 x 1-GbE Ethernet USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable Yes Fanless - System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 10,000 VPN throughput (Mbps)*3 2,000 IPS throughput (Mbps)*4 3,500 Anti-Malware throughput (Mbps)*4 2,500 UTM throughput (Anti-malware & IPS, Mbps)*4 2,500 Max. TCP concurrent sessions*5 1,000,000 Max. concurrent IPsec VPN tunnels*6 300 Recommended gateway-to-gateway IPsec VPN tunnels 150 Concurrent SSL VPN users 150 VLAN interface 64 Max. Concurrent devices logins*7 300 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 19V DC, 4.736A Max. power consumption (Watt Max.) 68 Heat dissipation (BTU/hr) 211.3 PoE power budget (watt max.) 30 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 300 x 182 x 43.5/11.81 x 7.17 x 1.71 Weight (kg/lb.): 1.64/3.62 Packing Dimensions (WxDxH)(mm/in.): 350 x 149 x 244/13.78 x 5.87 x 9.61 Weight (kg/lb.): 2.93/6.46 Included accessories Power adapter & Power cord RJ-45 - RS-232 cable for console connection Rack mounting kit Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 40°C/ 346653.298 hr 25°C/ 491775.8384 hr Acoustic noise 16.86dBA on < 25degC Operating Temperature, 43.76dBA on full FAN speed Certifications EMC FCC Part 15 (Class A) CE EMC (Class A) RCM (Class A) BSMI Safety LVD (EN62368-1) BSMI

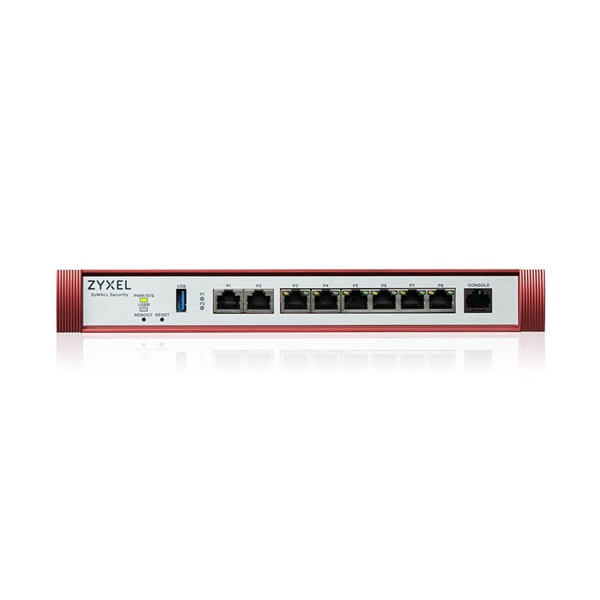

Hardware Specifications Interface ports 200H: 2 x 2.5-GbE Ethernet 6 x 1-GbE Ethernet 200HP: 1 x PoE+ Ethernet (802.3at, 30W max.) USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable Yes Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 5,000 VPN throughput (Mbps)*3 1,200 IPS throughput (Mbps)*4 2,000 Anti-Malware throughput (Mbps)*4 1,500 UTM throughput (Anti-malware & IPS, Mbps)*4 1,500 Max. TCP concurrent sessions*5 600,000 Max. concurrent IPsec VPN tunnels*6 100 Recommended gateway-to-gateway IPsec VPN tunnels 50 Concurrent SSL VPN users 50 VLAN interface 32 Max. Concurrent devices logins*7 200 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 200H: 12V DC, 2A max. 200HP: 19V DC, 3.42A Max. power consumption (Watt Max.) 200H: 22 200HP: 62 Heat dissipation (BTU/hr) 200H: 58.75 200HP: 191.9 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 272 x 187 x 36/10.7 x 7.36 x 1.42 Weight (kg/lb.): 200H: 1.52/3.34 200HP: 1.52/3.35 Packing Dimensions (WxDxH)(mm/in.): 427 x 247 x 73/16.81 x 9.72 x 2.87 Weight (kg/lb.): 200H: 2.43/5.36 200HP: 2.68/5.92 Included accessories Power adapter Power cord (200HP) RJ-45 - RS-232 cable for console connection Rack mounting kit (optional, by regions) Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 200H: 40°C/ 306768.409 hr 25°C/ 528037.0106 hr 200HP: 40°C/ 227747.9662 hr 25°C/ 392638.3847 hr Acoustic noise - Certifications EMC FCC Part 15 (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI


Hardware Specifications Interface ports 200H: 2 x 2.5-GbE Ethernet 6 x 1-GbE Ethernet 200HP: 1 x PoE+ Ethernet (802.3at, 30W max.) USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable Yes Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 5,000 VPN throughput (Mbps)*3 1,200 IPS throughput (Mbps)*4 2,000 Anti-Malware throughput (Mbps)*4 1,500 UTM throughput (Anti-malware & IPS, Mbps)*4 1,500 Max. TCP concurrent sessions*5 600,000 Max. concurrent IPsec VPN tunnels*6 100 Recommended gateway-to-gateway IPsec VPN tunnels 50 Concurrent SSL VPN users 50 VLAN interface 32 Max. Concurrent devices logins*7 200 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 200H: 12V DC, 2A max. 200HP: 19V DC, 3.42A Max. power consumption (Watt Max.) 200H: 22 200HP: 62 Heat dissipation (BTU/hr) 200H: 58.75 200HP: 191.9 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 272 x 187 x 36/10.7 x 7.36 x 1.42 Weight (kg/lb.): 200H: 1.52/3.34 200HP: 1.52/3.35 Packing Dimensions (WxDxH)(mm/in.): 427 x 247 x 73/16.81 x 9.72 x 2.87 Weight (kg/lb.): 200H: 2.43/5.36 200HP: 2.68/5.92 Included accessories Power adapter Power cord (200HP) RJ-45 - RS-232 cable for console connection Rack mounting kit (optional, by regions) Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 200H: 40°C/ 306768.409 hr 25°C/ 528037.0106 hr 200HP: 40°C/ 227747.9662 hr 25°C/ 392638.3847 hr Acoustic noise - Certifications EMC FCC Part 15 (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI

Hardware Specifications Interface ports 2 x 2.5-GbE Ethernet 2 x 2.5-GbE/PoE Ethernet (802.3at, total 30W) 8 x 1-GbE Ethernet USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable Yes Fanless - System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 10,000 VPN throughput (Mbps)*3 2,000 IPS throughput (Mbps)*4 3,500 Anti-Malware throughput (Mbps)*4 2,500 UTM throughput (Anti-malware & IPS, Mbps)*4 2,500 Max. TCP concurrent sessions*5 1,000,000 Max. concurrent IPsec VPN tunnels*6 300 Recommended gateway-to-gateway IPsec VPN tunnels 150 Concurrent SSL VPN users 150 VLAN interface 64 Max. Concurrent devices logins*7 300 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 19V DC, 4.736A Max. power consumption (Watt Max.) 68 Heat dissipation (BTU/hr) 211.3 PoE power budget (watt max.) 30 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 300 x 182 x 43.5/11.81 x 7.17 x 1.71 Weight (kg/lb.): 1.64/3.62 Packing Dimensions (WxDxH)(mm/in.): 350 x 149 x 244/13.78 x 5.87 x 9.61 Weight (kg/lb.): 2.93/6.46 Included accessories Power adapter & Power cord RJ-45 - RS-232 cable for console connection Rack mounting kit Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 40°C/ 346653.298 hr 25°C/ 491775.8384 hr Acoustic noise 16.86dBA on < 25degC Operating Temperature, 43.76dBA on full FAN speed Certifications EMC FCC Part 15 (Class A) CE EMC (Class A) RCM (Class A) BSMI Safety LVD (EN62368-1) BSMI


Hardware Specifications Interface ports 100H: 8 x 1-GbE Ethernet 100HP: 1 x PoE+ Ethernet (802.3at, 30W max.) USB 3.0 ports 1 Console port Yes (RJ-45) Rack-mountable - Fanless Yes System Capacity & Performance*1 SPI firewall throughput (Mbps)*2 3,000 VPN throughput (Mbps)*3 750 IPS throughput (Mbps)*4 1,500 Anti-Malware throughput (Mbps)*4 750 UTM throughput (Anti-malware & IPS, Mbps)*4 750 Max. TCP concurrent sessions*5 300,000 Max. concurrent IPsec VPN tunnels*6 50 Recommended gateway-to-gateway IPsec VPN tunnels 20 Concurrent SSL VPN users 25 VLAN interface 16 Max. Concurrent devices logins*7 64 Security Service*8 Anti-Malware Yes IPS Yes Application Patrol Yes Web filtering Yes Reputation Filter Yes SecuReporter Yes Sandboxing Yes Device Insight Yes Secure WiFi*9 Yes Key Features VPN IKEv2, IPSec, SSL SSL (HTTPS) inspection Yes Two-Factor Authentication Yes Nebula Centralized Management Yes Power Requirements Power input 100H: 12V DC, 2A max. 100HP: 19V DC,3.42A Max. power consumption (Watt Max.) 100H: 17 100HP: 51.2 Heat dissipation (BTU/hr) 100H: 40.365 100HP: 194.5 Physical Specifications Item Dimensions (WxDxH)(mm/in.): 216 x 143 x 33/8.50 x 5.80 x 1.30 Weight (kg/lb.): 100H: 1.04/2.29 100HP: 1.05/2.31 Packing Dimensions (WxDxH)(mm/in.): 278 x 189 x 99/10.94 x 7.44 x 3.89 Weight (kg/lb.): 100H: 1.62/3.57 100HP: 1.91/4.21 Included accessories Power adapter Power cord (100HP) RJ-45 - RS-232 cable for console connection Environmental Specifications Operating Temperature: 0°C to 40°C / 32°F to 104°F Humidity: 10% to 90% (non-condensing) Storage Temperature: -30°C to 70°C / -22°F to 158°F Humidity: 10% to 90%(non-condensing) MTBF (hr) 100H: 40°C/ 289845.2327 hr 25°C/ 518347.4294 hr 100HP: 40°C/ 291183.7887 hr 25°C/ 550382.5753 hr Acoustic noise - Certifications EMC FCC Part 15 (Class B) CE EMC (Class B) RCM (Class B) BSMI Safety LVD (EN62368-1) BSMI
